Zamak ZL5 - properties and applications
A zinc alloy with aluminium, copper and magnesium. It melts at 380°C, fills a mould well and holds its dimensions - which is why it goes wherever small, precise parts are cast.
What Zamak ZL5 is
Zamak is a family of zinc alloys with aluminium, magnesium and copper. The name comes from the first letters of the German names of these metals - Zink, Aluminium, Magnesium, Kupfer. ZL5 is one variant of that family, notable for its high strength and excellent casting properties.
Chemical composition
| Zinc (Zn) | approx. 95% |
|---|---|
| Aluminium (Al) | 4% |
| Copper (Cu) | 1% |
| Magnesium (Mg) | 0.03% |
The names it goes by
Across the European Union the same alloy is designated in several ways - worth remembering when reading documentation or an enquiry.
- ZnAl4Cu1 - the international designation by chemical composition
- ZL0410 - the British standard and some other European standards
- ZAMAK 5 - the common name, used in Germany and across the EU
Properties
- High mechanical strength - better tensile strength and higher hardness than the other zamak alloys, so it suits parts under load
- Excellent casting properties - a low melting point, around 380°C, and excellent fluidity allow complex shapes and thin walls to be cast
- Corrosion resistance - it performs well where parts are exposed to the weather
- Dimensional stability - low shrinkage on solidification, which matters in the production of precision components
Where it is used
- Automotive - locks, handles, window mechanisms, trim and decorative parts
- Electronics - housings and connector parts, where repeatable dimensions count
- Appliances - handles, hinges and decorative detail on household equipment
- Construction - fixings and fittings that need strength and corrosion resistance
- Models and toys - casting of small parts to a high accuracy
What we supply

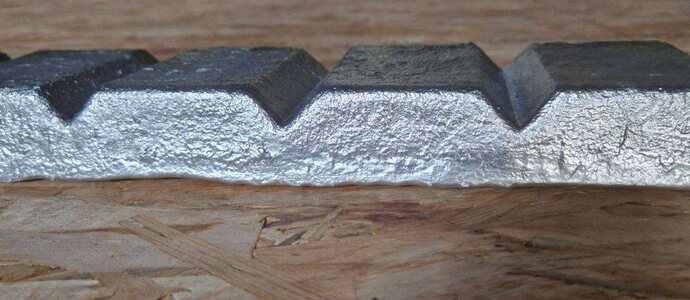

We sell Zamak ZL5 as 10 kg ingots. For larger orders we adapt the batch size and packing to the buyer's needs - please contact us with your expected consumption.
